STR3A200 - Off-Line PWM Controllers

Sanken electric

📥 Download Datasheet

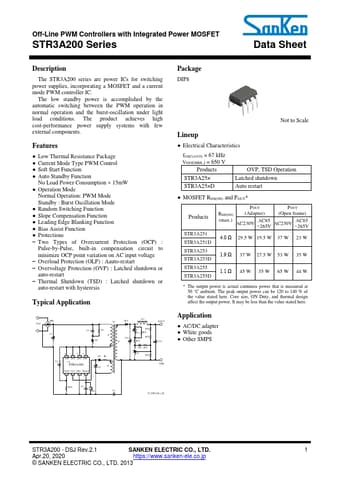

STR3A200 Datasheet Preview — Preview of STR3A200 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STR3A200
Manufacturer	Sanken ↗ electric
File Size	708.82 KB
Description	Off-Line PWM Controllers
Datasheet	STR3A200-Sankenelectric.pdf

STR3A200 Product details

Description

The STR3A200 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

Features

Low Thermal Resistance Package.
Current Mode Type PWM Control.
Soft Start Function.
Auto Standby Function No Load Power Consumption < 15mW.
Operation Mode Normal Operation: PWM Mode Standby : Burst Oscillation Mode.
Random Switching Function.
Slope Compensation Function.
Leading Edge Blanking Function.
Bias Assist Function.
Protections.
Two Types of Overcurrent Protection (OCP) : Pulse-by-Pulse, built-in compensation circuit to minimize.
