STA802M, STA801M (STA801M / STA802M) 2-Output Separate Excitation Switching Type

STA802M Description

qSTA801M/802M STA801M/802M 2-Output Separate Excitation Switching Type s.

STA802M Features

* 2 regulators combined 1 package Compact inline package Output current (0.5A × 2 output) Output voltage of Ch2 selectable from 4 levels. Built-in flywheel diode (Schottky barrier diode) Requires only 7 external components

STA802M Applications

* For BS and CS antenna power supplies
* For stabilization of the secondary stage of switching power supplies
* Electronic equipment sLineup Part Number Ch1 STA801M STA802M 5 9 Output Voltage (V) Ch2(Select one output) 9.0 / 11.5 / 12.1 / 15.5 9.1 / 11.7 / 12.1 / 15.7 sAbso

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STA802M, STA801M. Please refer to the document for exact specifications by model.

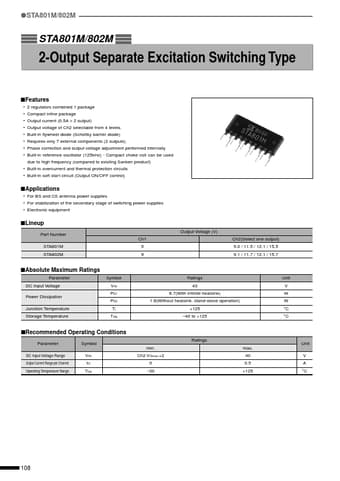

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STA802M, STA801M
Manufacturer
Sanken ↗ electric
File Size
82.50 KB
Datasheet
STA801M_Sankenelectric.pdf
Description
(STA801M / STA802M) 2-Output Separate Excitation Switching Type
Note
This datasheet PDF includes multiple part numbers: STA802M, STA801M.
Please refer to the document for exact specifications by model.
