SI-8120E - DC/DC Converter

Sanken electric

📥 Download Datasheet

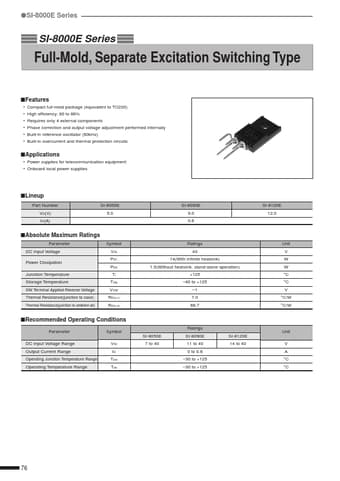

SI-8120E Datasheet Preview — Preview of SI-8120E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SI-8120E
Manufacturer	Sanken electric
File Size	41.73 KB
Description	DC/DC Converter
Datasheet	SI-8120E_Sankenelectric.pdf

SI-8120E Product details

Features

Compact full-mold package (equivalent to TO220) High efficiency: 80 to 88% Requires only 4 external components Phase correction and output voltage adjustment performed internally Built-in reference oscillator (60kHz) Built-in overcurrent and thermal protection circuits s.
