SEL1050M Datasheet (Sanken electric) - 5phi Round Narrow-directivity LED

SEL1050M, 5phi Round Narrow-directivity LED

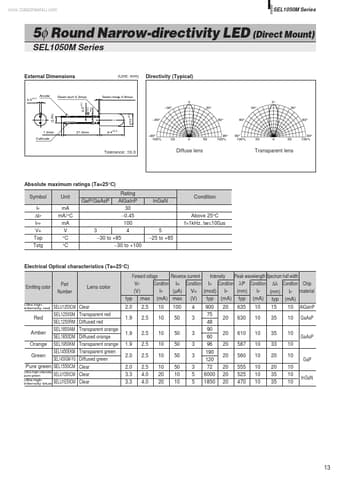

www.DataSheet4U.com SEL1050M Series 5φ Round Narrow-directivity LED (Direct Mount) SEL1050M Series External Dimensions (Unit: mm) Directivity (Typical) 0.5±0.1 Anode Resin burr 0.3max 0.5±0.1 0.65 max Resin heap 0.8max 0 30° ±0.2 0° 30° 60° 30° 60° 30° 60° (2.54) 1.0min Cathode 21.0min 9.4±0.3 ø5.0 60° 90° 100% 50 0 50 90° 100% 90° 100% 50 0 50 90° 100% Tolerance: ±0.3 Diffuse lens Transparent lens Absolute maximum ratings (Ta=25°C) Symbo
