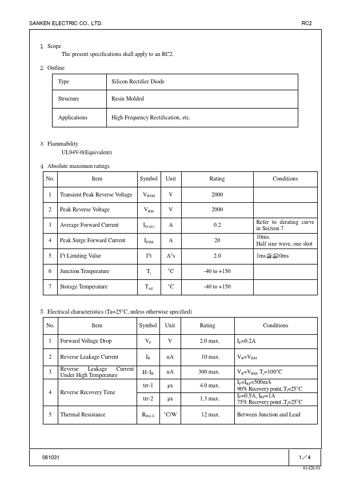

SANKEN ELECTRIC CO., LTD.
１ Scope The present specifications shall apply to an RC2.
２ Outline
Type Silicon Rectifier Diode
Structure
Resin Molded
Applications
High Frequency Rectification, etc.
RC2
３ Flammability UL94V-0(Equivalent)
４ Absolute maximum ratings
No. Item
Symbol Unit
1 Transient Peak Reverse Voltage VRSM
2 Peak Reverse Voltage
VRM
3 Average Forward Current
IF(AV)
4 Peak Surge Forward Current 5 I2t Limiting Value
IFSM I2t
V V A A A2s
6 Junction Temperature
Tj °C
7 Storage Temperature
Tstg °C
Rating 2000 2000 0.2 20 2.0 -40 to +150 -40 to +150
Conditions
Refer to derating curve in Section 7 10ms. Half sine wave, one shot 1ms≦t≦10ms
５ Electrical characteristics (Ta=25°C, unless otherwise specified)
No.
