FML-23S - Ultra-Fast-Recovery Rectifier Diodes

Sanken

Datasheet Details

Part number	FML-23S
Manufacturer	Sanken
File Size	751.12 KB
Description	Ultra-Fast-Recovery Rectifier Diodes
Datasheet	FML-23S Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
FML-23S	Ultrafast Rectifier	INCHANGE
FML-23R	10.0 Ampere Dual Unipolar/Common Anode Polarity Ultrafast Recovery Diode	Thinki Semiconductor
FML-22R	10.0 Ampere Dual Unipolar/Common Anode Polarity Ultrafast Recovery Diode	Thinki Semiconductor
FML-24R	10.0 Ampere Dual Unipolar/Common Anode Polarity Ultrafast Recovery Diode	Thinki Semiconductor
FML-4202S	Fast Recovery Rectifier	INCHANGE

Other Datasheets by Sanken

Part Number	Description
FML-22S	Ultra-Fast-Recovery Rectifier Diodes
FML-24S	Fast Recovery Diode
FML-12S	Ultra-Fast-Recovery Rectifier Diodes
FML-13S	Ultra-Fast-Recovery Rectifier Diodes
FML-14S	Ultra-Fast-Recovery Rectifier Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

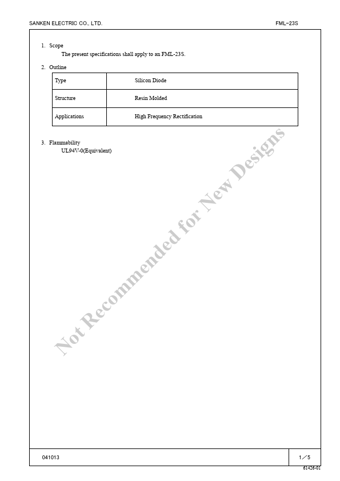

SANKEN ELECTRIC CO., LTD. FML-23S 1. Scope The present specifications shall apply to an FML-23S. 2. Outline Type Silicon Diode Structure Resin Molded Applications High Frequency Rectification 3. Flammability UL94V-0(Equivalent) Designs Not Recommended for New 041013 1／5 61426-01 SANKEN ELECTRIC CO., LTD. FML-23S 4. Absolute maximum ratings No. Item Symbol Unit Rating Conditions 1 Transient Peak Reverse Voltage VRSM V 300 2 Peak Reverse Voltage VRM V 300 3 Average Forward Current IF(AV) A 10 Refer to Derating of 7 4 Peak Surge Forward Current IFSM A 75 10msec. Half sinewave, one shot 5 I2t Limiting Value 6 Junction Temperature 7 Storage Temperature I2t A2s Tj °C Tstg °C No.1,2,4&5 show characteristics per one chip. 24.
