SANKEN ELECTRIC CO., LTD.

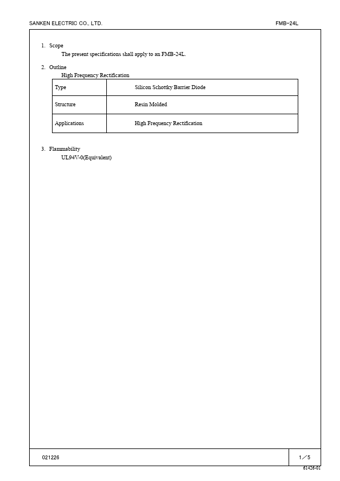

1. Scope The present specifications shall apply to an FMB-24L.
2. Outline High Frequency Rectification
Type
Silicon Schottky Barrier Diode
Structure
Resin Molded
Applications
High Frequency Rectification
3. Flammability UL94V-0(Equivalent)
FMB-24L
021226
1／5
61426-01
SANKEN ELECTRIC CO., LTD.
4. Absolute maximum ratings No. Item
Symbol Unit
1 Transient Peak Reverse Voltage 2 Peak Reverse Voltage 3 Average Forward Current 4 Peak Surge Forward Current 5 I2t Limiting Value
VRSM VRM IF(AV) IFSM I2t
V V A A A2s
6 Junction Temperature 7 Storage Temperature
Tj °C Tstg °C
No.1,2,4&5 show ratings per one chip.
Rating 40 40 10 60 18
-40~+150 -40~+150
FMB-24L
Conditions
Refer to Derating of 7 10msec. Half sinewave, one shot 1msec≤t≤10msec
5.
