2SK2420, MOSFET

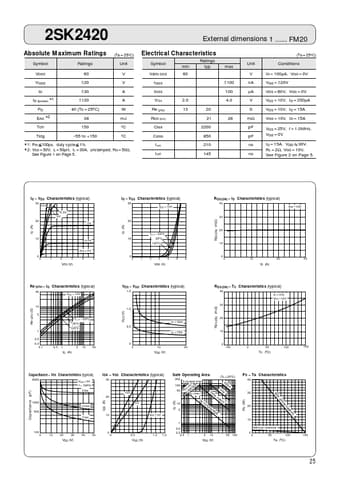

2SK2420 External dimensions 1 FM20 Absolute Maximum Ratings (Ta = 25ºC) Symbol Ratings Unit VDSS 60 V VGSS ±20 V ID ±30 A ID (pulse) 1 ±120 A PD 40 (Tc = 25ºC) W EAS 2 38 mJ Tch 150 ºC Tstg 55 to +150 ºC 1: PW 100µs, duty cycle 1% 2: VDD = 50V, L = 50µH, IL = 30A, unclamped, RG = 50Ω, See Figure 1 on Page 5.
Electrical Characteristics Symbol Ratings min typ V(BR) DSS 60 I GSS I DSS VTH 2.0 Re (yfs) 13 20 RDS (on) 21
