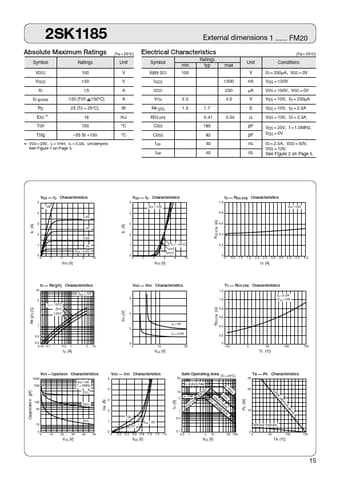

2SK1185
Absolute Maximum Ratings
Symbol VDSS VGSS ID ID (pulse) PD EAS Tch Tstg Ratings 100 ± 20 ±5 ± 20 (Tch 150ºC)
(Ta = 25ºC)
External dimensions 1 ...... FM20
Electrical Characteristics
Symbol V(BR) DSS I GSS I DSS VTH Re (yfs) RDS (on) Ciss Coss t on t off 2.0 1.5 1.7 0.41 180 82 40 40 0.54 min 100 ± 500 250 4.0 Ratings typ max Unit V nA µA V S Ω pF pF ns ns
(Ta = 25ºC)
Unit V V A A W mJ ºC ºC
Conditions I D = 250µA, VGS = 0V VGS = ± 20V VDS = 100V, VGS = 0V VDS = 10V, I D = 250µA VDS = 10V, I D = 2.5A VGS = 10V, I D = 2.5A VDS = 25V, f = 1.0MHz, VGS = 0V I D = 2.5A, VDD = 50V, VGS = 10V, See Figure 2 on Page 5.
25 (Tc = 25ºC)
*
16 150 –55 to +150
unclamped,
VDD = 25V, L = 1mH, I L = 5.0A, *: See Figure 1 on Page 5.
VDS — I D Characteristics
5 10V 4 6.5V 3 6V 2 5.
