STRA6252M, STR-A6252M Universal-Input 20 W 67 kHz Flyback Switching Regulators

STRA6252M Description

Sanken Power Devices from Allegro MicroSystems STR-A6252M Universal-Input 20 W 67 kHz Flyback Switching Regulators www.datasheet4u.com S Re w it gu.
Source/OCP terminal FM/Soft start terminal Ground terminal FB/CC/OLP terminal Functions MOSFET Source/Overcurrent protection Capacitor connection ter.

STRA6252M Features

* 67 kHz PWM with ±5% frequency jittering for EMI noise filtering and cost reduction Rugged 650 V avalanche-rated MOSFET:
* Simplified surge absorption
* No VDSS derating required Low RDS(on) : 2.8 Ω maximum Auto-burst mode for stand-by operation or light loads; less transformer audibl

STRA6252M Applications

* from DVD players and VCR player/recorders to ac adapters for cellular phones and digital cameras. An auto-burst standby function reduces power consumption at light load, while multiple protections, including the avalanche-energy guaranteed MOSFET, provide high reliability of system design. Cycle-by

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STRA6252M, STR-A6252M. Please refer to the document for exact specifications by model.

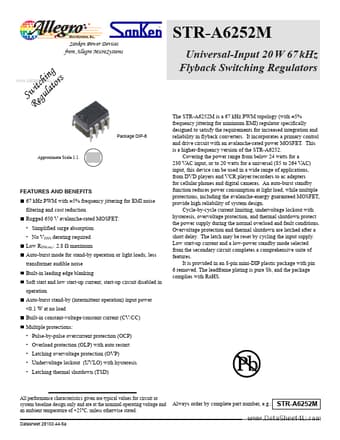

datasheet Preview Page 2 datasheet Preview Page 3
