DSS12U - SINGLE PHASE 1.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Name: DSS12U
SKU: DSS12U-1333085

Sangdest Microelectronics

The DSS12U by Sangdest Microelectronics is a SINGLE PHASE 1.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

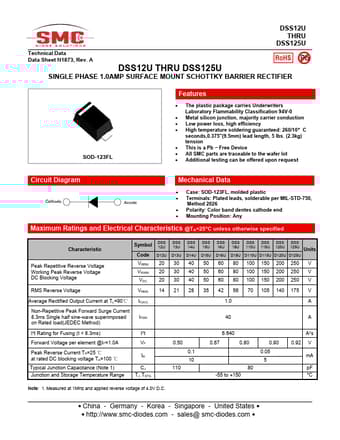

DSS12U SINGLE PHASE 1.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER by Sangdest Microelectronics - Datasheet Preview — Official preview page of the **DSS12U** SINGLE PHASE 1.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER datasheet (Sangdest Microelectronics).

Datasheet Details

Part number	DSS12U
Manufacturer	SangdeSTMicroelectronics
File Size	320.85 KB
Description	SINGLE PHASE 1.0AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	DSS12U-SangdestMicroelectronics.pdf
Additional preview pages of the DSS12U datasheet.

DSS12U Product details

Features

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
Metal silicon junction, majority carrier conduction.
Low power loss, high efficiency.
High temperature soldering guaranteed: 260/10°C seconds,0.375"(9.5mm) lead length, 5 lbs. (2.3kg) tension.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: SOD-123F.
