180NQ040R-1 - SCHOTTKY RECTIFIER

Download the 180NQ040R-1 datasheet PDF. This datasheet also covers the 180NQ035-1 variant, as both devices belong to the same schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • 150℃ TJ operation.
  • Unique high power, Half-Pak module.
  • Replaces three parallel DO-5’S.
  • Easier to mount and lower profile than DO-5’S.
  • High purity, high temperature epoxy encapsulation for enhanced.
  • mechanical strength and moisture resistance.
  • Low forward voltage drop.
  • High frequency operation.
  • Guard ring for enhanced ruggedness and long term reliability.
  • This is a Pb.
  • Free Device.
  • All SMC parts are traceable to the wafer lot.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (180NQ035-1-SangdestMicroelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 180NQ040R-1
Manufacturer Sangdest Microelectronics
File Size 313.49 KB
Description SCHOTTKY RECTIFIER
Datasheet download datasheet 180NQ040R-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
180NQ040 SCHOTTKY RECTIFIER International Rectifier
180NQ045 SCHOTTKY RECTIFIER International Rectifier
180NQ045PbF SCHOTTKY RECTIFIER International Rectifier
180NQ035 SCHOTTKY RECTIFIER International Rectifier
180NQ SCHOTTKY RECTIFIER International Rectifier

Other Datasheets by Sangdest Microelectronics

Part Number Description
180NQ040-1 SCHOTTKY RECTIFIER
180NQ045-1 SCHOTTKY RECTIFIER
180NQ045R-1 SCHOTTKY RECTIFIER
180NQ035-1 SCHOTTKY RECTIFIER
180NQ035R-1 SCHOTTKY RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

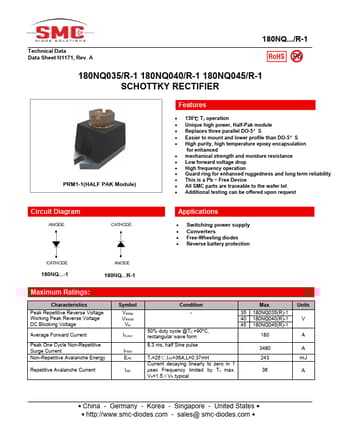

Technical Data Data Sheet N1171, Rev. A 180NQ.../R-1 180NQ035/R-1 180NQ040/R-1 180NQ045/R-1 SCHOTTKY RECTIFIER PRM1-1(HALF PAK Module) Features  150℃ TJ operation  Unique high power, Half-Pak module  Replaces three parallel DO-5’S  Easier to mount and lower profile than DO-5’S  High purity, high temperature epoxy encapsulation for enhanced  mechanical strength and moisture resistance  Low forward voltage drop  High frequency operation  Guard ring for enhanced ruggedness and long term reliability  This is a Pb − Free Device  All SMC parts are traceable to the wafer lot  Additional testing can be offered upon request Circuit Diagram Applications  Switching power supply  Converters  Free-Wheeling diodes  Reverse battery protection 180NQ...-1 180NQ...
