SDS065J006C3 - SiC Schottky Barrier Diode

Description

VRRM 650 V IF(135℃) 10 A QC 17 nC TO-220-2L PIN 1 PIN 2 CASE Device SDS065J006C3 Package TO-220-2L Marking DS065006C3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 65

📥 Download Datasheet

Datasheet Details

Part number SDS065J006C3
Manufacturer Sanan
File Size 274.23 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet SDS065J006C3 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SDS06F150S POWER RECTIFIER Fairchild Semiconductor
SDS06U150S POWER RECTIFIER Fairchild Semiconductor
SDS06U20DN POWER RECTIFIER Fairchild Semiconductor
SDS06U20S POWER RECTIFIER Fairchild Semiconductor
SDS06U40S POWER RECTIFIER Fairchild Semiconductor

Other Datasheets by Sanan

Part Number Description
SDS065J006E3 SiC Schottky Barrier Diode
SDS065J002D3 SiC Schottky Barrier Diode
SDS065J004D3 SiC Schottky Barrier Diode
SDS065J008C2 SiC Schottky Barrier Diode
SDS065J008C3 SiC Schottky Barrier Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

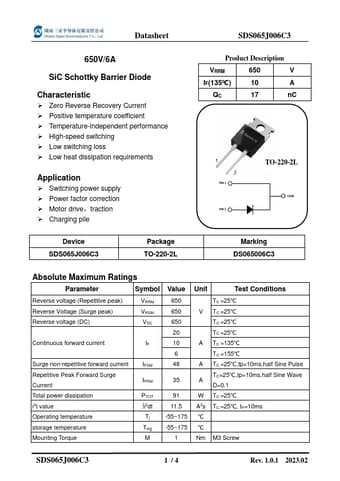

Datasheet SDS065J006C3 650V/6A SiC Schottky Barrier Diode Characteristic ➢ Zero Reverse Recovery Current ➢ Positive temperature coefficient ➢ Temperature-independent performance ➢ High-speed switching ➢ Low switching loss ➢ Low heat dissipation requirements Application ➢ Switching power supply ➢ Power factor correction ➢ Motor drive，traction ➢ Charging pile Product Description VRRM 650 V IF(135℃) 10 A QC 17 nC TO-220-2L PIN 1 PIN 2 CASE Device SDS065J006C3 Package TO-220-2L Marking DS065006C3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC 650 TC =25℃ 20 TC =25℃ Continuous forward current IF 10 A TC =135℃ 6
