DF200AA160 - DIODE

Download the DF200AA160 datasheet PDF. This datasheet also covers the DF200AA120 variant, as both devices belong to the same diode family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DF200AA120-SanRex.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DF200AA160
Manufacturer SanRex
File Size 103.80 KB
Description DIODE
Datasheet download datasheet DF200AA160 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DF200 2.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER WON-TOP
DF2005 2A Miniature Glass Passivated Single-Phase Bridge Rectifiers CITC
DF2005-G Glass Passivated Bridge Rectifiers Comchip
DF2005S GLASS PASSIVATED BRIDGE RECTIFIERS KD
DF2005S 2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER MIC

Other Datasheets by SanRex

Part Number Description
DF200AA120 DIODE
DF200AB160 DIODE
DF200AB80 DIODE
DF200AE160 MDULE DIODE
DF200AE80 MDULE DIODE

Full PDF Text Transcription

Click to expand full text

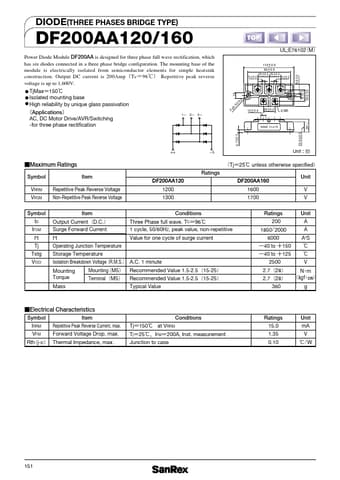

DIODE(THREE PHASES BRIDGE TYPE) DF200AA120/160 Power Diode Module DF200AA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction. Output DC current is 200AmpʢTcʹ96ˆʣ Repetitive peak reverse voltage is up to 1,600V. ˔ TjMaxʹ150ˆ ˔ Isolated mounting base ˔ High reliability by unique glass passivation ʢApplicationsʣ AC, DC Motor Drive/AVR/Switching -for three phase rectification ʙʙʙ Пʶ  UL;E76102ʢMʣ ʶ ʶ ʶ ʶ ʶ ʶ ʶ ʶ ʶ ʴ ʵ ʶ ʶ . /".
