QBB100A60 - (QBB100A40 / QBB100A60) TRANSISTOR MODULE

Download the QBB100A60 datasheet PDF. This datasheet also covers the QBB100A40 variant, as both devices belong to the same (qbb100a40 / qbb100a60) transistor module family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (QBB100A40_SanRexCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number QBB100A60
Manufacturer SanRex Corporation
File Size 145.69 KB
Description (QBB100A40 / QBB100A60) TRANSISTOR MODULE
Datasheet download datasheet QBB100A60 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
QBB150A40 TRANSISTOR MODULE ETC
QBB150A60 TRANSISTOR MODULE ETC

Other Datasheets by SanRex Corporation

Part Number Description
QBB100A40 (QBB100A40 / QBB100A60) TRANSISTOR MODULE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

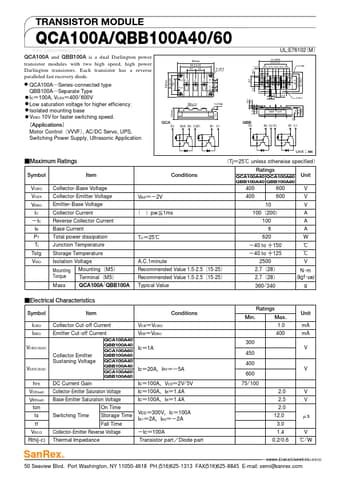

TRANSISTOR MODULE QCA100A/QBB100A40/60 www.DataSheet4U.com UL;E76102 M 95max QCA100A and QBB100A is a dual Darlington power transistor modules with two high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. QCA100A Series-connected type QBB100A Separate Type IC 100A, VCEX 400/600V Low saturation voltage for higher efficiency. Isolated mounting base VEBO 10V for faster switching speed.
