SMTIR9902, SMTIR9901 - (SMTIR9901 / SMTIR9902) Infrared Sensors

Samtec

The SMTIR9902 by Samtec is a (SMTIR9901 / SMTIR9902) Infrared Sensors. Below is the official datasheet preview.

📥 Download Datasheet

SMTIR9902 (SMTIR9901 / SMTIR9902) Infrared Sensors by Samtec - Datasheet Preview — Official preview page of the **SMTIR9902** (SMTIR9901 / SMTIR9902) Infrared Sensors datasheet (Samtec).

Datasheet Details

Part number	SMTIR9902, SMTIR9901
Manufacturer	Samtec
File Size	433.35 KB
Description	(SMTIR9901 / SMTIR9902) Infrared Sensors
Datasheet	SMTIR9901_Samtec.pdf
Note	This datasheet PDF includes multiple part numbers: SMTIR9902, SMTIR9901. Please refer to the document for exact specifications by model.

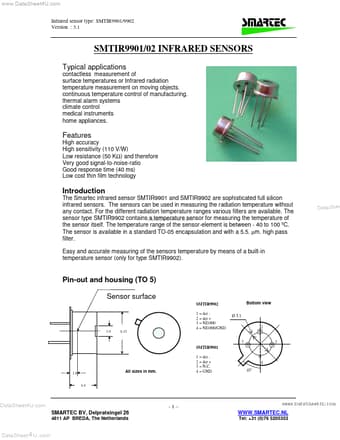

Additional preview pages of the SMTIR9902 datasheet.

SMTIR9902 Product details

Description

Specifications Parameters Number of thermojunctions Active area Die Size Resistance of thermopile Sensitivity Temp.Coeff.of sensitivity Specific Detectivity Noise equivalent power Noise voltage Time Constant Temperature range (sensor) Storage temperature Filter (high Pass) ¹) at 500 K,DC typical units et4U.com 100 0.50 mm² 2.2 2.2 mm² 50 ± 15 K 110 ± 20 v/w ¹) -0.52 ± 0.08 %/K 2.1 10e8 cm.Hz½/W ¹) 0.35 nW ¹) DataSheet4U.com 37 nV/Hz½ 40 ± 10 ms (63%) -20 - 100 ° C -40 - 100 ° C

Features

The Smartec infrared sensor SMTIR9901 and SMTIR9902 are sophisticated full silicon infrared sensors. The sensors can be used in measuring the radiation temperature without any contact. For the different radiation temperature ranges various filters are available. The sensor type SMTIR9902 containsDataSheet4U. com a temperature sensor for measuring the temperature of the sensor itself. The temperature range of the sensor-element is between - 40 to 100 ºC. The sensor is available in a standard TO-0.
