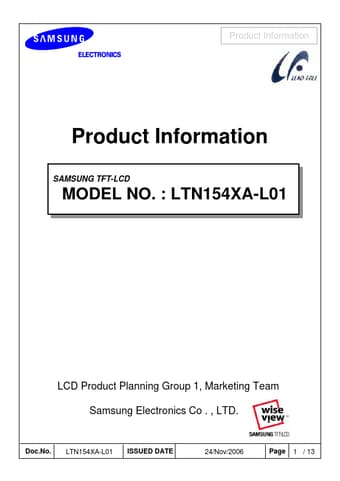

LTN154XA-L01 Datasheet Preview — Preview of LTN154XA-L01 PDF

Datasheet Details

Part number	LTN154XA-L01
Manufacturer	Samsung
File Size	277.40 KB
Description	LCD
Datasheet	LTN154XA-L01_Samsung.pdf

LTN154XA-L01 Product details

Description

-------------------( 3 ) 1. Electrical Absolute Ratings -------------------( 4 ) 2. Optical Characteristics -------------------( 5 ) 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit -------------------( 6 ) 4. Block Diagram 4.1 TFT LCD Module 4.2 Backlight Unit www.DataSheet.net/ -------------------( 7 ) -------------------( 8 ) 5. Input Terminal Pin Assignment 5.1 Input Signal & Power 5.2 Backlight Unit 5.3 Timing Diagrams of LVDS For Transmitting 6. Interface Timi

Features

Thin and light weight.
High contrast ratio, high aperture structure.
Wide XGA (1280x800 pixels) resolution.
Fast Response Time.
Low power consumption.
Single CCFL.
DE (Data enable) only mode.
3.3V LVDS Interface.
On board EDID chip.
Pb-free product.
