LTI320AP02 - TFT LCD Module

Name: LTI320AP02
SKU: LTI320AP02-753328

Samsung

📥 Download Datasheet

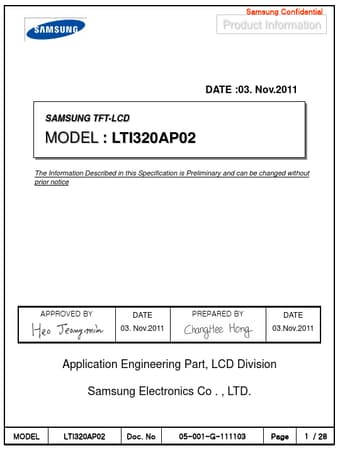

LTI320AP02 Datasheet Preview — Preview of LTI320AP02 PDF

Datasheet Details

Part number	LTI320AP02
Manufacturer	Samsung
File Size	679.27 KB
Description	TFT LCD Module
Datasheet	LTI320AP02_Samsung.pdf

LTI320AP02 Product details

Description

--------------------------------------------------------------------------------------- (4) General Information --------------------------------------------------------------------------------------- (4) 1.

Features

RoHS compliance (Pb-free).
High contrast ratio, High aperture ratio.
PVA(Patterned Vertical Align) mode.
Wide viewing angle (±178°).
High speed response.
Landscape / Portrait type compatible.
Wide XGA (1366 x 768 pixels) resolution (16:9).
Low power consumption.
U type 4 CCFTs / New Socket3 type.
DE(Data Enable) mode.
LVDS (Low Voltage Differential Signaling) interface (1pixel/clock) General Information Items Module Size Weight Pixel Pitch.
