KS58555 - UNIVERSAL 15 MEMORY DIALER

General Description

Pin No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Symbol R5 R1 R2 R3 R4 HS M/B MDS/DRS OSCI OSCO C5 HDO VDD VSS TONE X’ MUTE DP C1 C2 C3 C4 HFO O Hands-Free Control Output I Column Key Input I I I I O I O S S O O O Hook Switch Make/Break Select Mode & Dial Pulse Ratio Select Pin Oscill

Key Features

  • Flash Time selectable on the keyboard (100, 303, 604 mS) Hands-Free and Hold functions Tone/Pulse switchable 16 digit indirect (Two-touch) 10 memory (PuIse : 16 digit, Tone : 15 digit) 16 digit direct (One-touch) 4 memory (Pulse : 16 digit, Tone : 15 digit) Uses 3.579545MHz Color burst Crystal or ceramic resonator Pulse rate selectable. (10 pps, 20 pps) Make/Break ratio selecta.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KS58555B UNIVERSAL 15 MEMORY DIALER Samsung semiconductor
KS58550 UNIVERSAL 10 MEMORY DIALER Samsung semiconductor
KS5851 (KS5852) Pulse Dialer Samsung Electronics
KS5852 Pulse Dialer with Redial Samsung Electronics
KS5184 6 Function 6 Digital Alarm Watch Samsung Electronics

Other Datasheets by Samsung Semiconductor

Part Number Description
KS58006 TONE/PULSE DIALER WITH REDIAL
KS58015 DTMF DIALER FOR BINARY DATA-IN
KS5805 TELEPHONE PULSE DIALER WITH REDIAL
KS5820 Tone/Pulse Dialer
KS58C20 Tone/Pulse Dialer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

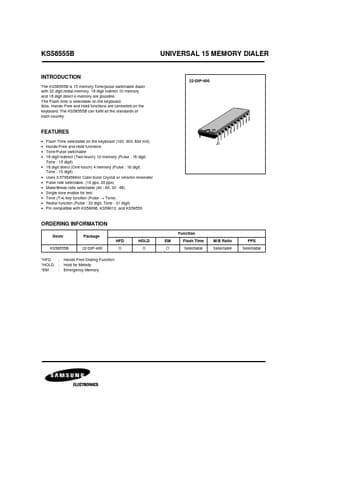

KS58555B UNIVERSAL 15 MEMORY DIALER INTRODUCTION The KS58555B is 15 memory Tone/pulse switchable dialer with 32 digit redial memory. 16 digit indirect 10 memory and 16 digit direct 4 memory are possible. The Flash time is selectable on the keyboard. Also, Hands-Free and Hold functions are controlled on the keyboard. The KS58555B can fulfill all the standards of each country. 22-DIP-400 FEATURES • • • • • • • • • • • • Flash Time selectable on the keyboard (100, 303, 604 mS) Hands-Free and Hold functions Tone/Pulse switchable 16 digit indirect (Two-touch) 10 memory (PuIse : 16 digit, Tone : 15 digit) 16 digit direct (One-touch) 4 memory (Pulse : 16 digit, Tone : 15 digit) Uses 3.579545MHz Color burst Crystal or ceramic resonator Pulse rate selectable.
