KA2402 - DC MOTOR SPEED CONTROLLER

Features

  • Operating supply voltage range KA2402: Vcc=1.8V ~ 8V.
  • Capable ot making the applicable set compact because of a minimum of adjust speed.
  • Easy to adjust speed.
  • Built-in stable low reference power meeting the requirements for 2 speeds.
  • VREF = 0.2V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KA2402D LOW VOLTAGE DC MOTOR SPEED CONTROLLER ETC
KA2410 TELEPHONE TONE RINGERS Wing Shing Computer Components
KA2411 TELEPHONE TONE RINGERS Wing Shing Computer Components
KA248 Quad Operational Amplifier Fairchild
KA2002-BE10A Compact Battery drivable thick film thermal printhead Rohm

Other Datasheets by Samsung Semiconductor

Part Number Description
KA2401 DC MOTOR SPEED CONTROLLER
KA2404 DC MOTOR SPEED CONTROLLER
KA2404A DC MOTOR SPEED CONTROLLER
KA2407 DC MOTOR SPEED CONTROLLER
KA2410 THE KA2410/KA2411 IS A BIPOLAR INTEGRATED CIRCUIT DESIGNED FOR TELEPHONE BELL REPLACEMENT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

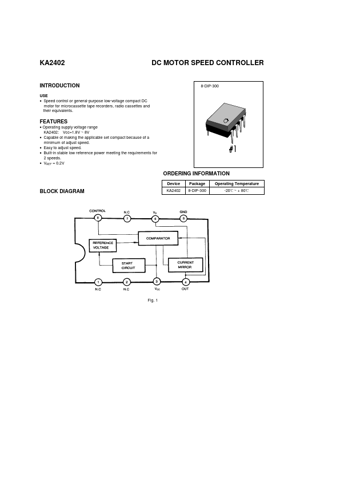

KA2402 INTRODUCTION USE • Speed control or general-purpose low-voltage compact DC motor for microcassette tape recorders, radio cassettes and their equivalents. DC MOTOR SPEED CONTROLLER 8-DIP-300 FEATURES • Operating supply voltage range KA2402: Vcc=1.8V ~ 8V • Capable ot making the applicable set compact because of a minimum of adjust speed. • Easy to adjust speed. • Built-in stable low reference power meeting the requirements for 2 speeds. • VREF = 0.2V ORDERING INFORMATION Device Package 8-DIP-300 Operating Temperature -20 BLOCK DIAGRAM KA2402 Î~ + 80Î Fig.
