K9K4G08Q0M - 512M x 8 Bit / 256M x 16 Bit NAND Flash Memory

General Description

Offered in 512Mx8bit or 256Mx16bit, the K9XXGXXXXM is 4G bit with spare 128M bit capacity.

Its NAND cell provides the most cost-effective solution for the solid state mass storage market.

Key Features

  • Voltage Supply -1.8V device(K9K4GXXQ0M): 1.70V~1.95V -3.3V device(K9XXGXXUXM): 2.7 V ~3.6 V.
  • Organization - Memory Cell Array -X8 device(K9XXG08XXM) : (512M + 16,384K)bit x 8bit -X16 device(K9XXG16XXM) : (256M + 8,192K)bit x 16bit - Data Register -X8 device(K9XXG08XXM): (2K + 64)bit x8bit -X16 device(K9XXG16XXM): (1K + 32)bit x16bit - Cache Register -X8 device(K9XXG08XXM) : (2K + 64)bit x8bit -X16 device(K9XXG16XXM) : (1K + 32)bit x16bit.
  • Automatic Program and Erase -.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
K9K1208D0C 64M x 8 Bit / 32M x 16 Bit NAND Flash Memory Samsung semiconductor
K9K1208Q0C 64M x 8 Bit / 32M x 16 Bit NAND Flash Memory Samsung semiconductor
K9K1208U0A-YCB0 64M x 8 Bit NAND Flash Memory Samsung semiconductor
K9K1208U0A-YCB0 64M x 8 Bit NAND Flash Memory Samsung semiconductor
K9K1208U0A-YCB0 64M x 8 Bit NAND Flash Memory Samsung semiconductor

Other Datasheets by Samsung Semiconductor

Part Number Description
K9K4G08U0M 512M x 8 Bit / 256M x 16 Bit NAND Flash Memory
K9K4G16Q0M 512M x 8 Bit / 256M x 16 Bit NAND Flash Memory
K9K4G16U0M 512M x 8 Bit / 256M x 16 Bit NAND Flash Memory
K9K2G08U0M-VIB0 256M x 8 Bit / 128M x 16 Bit NAND Flash Memory
K9K2G08U0M-YCB0 256M x 8 Bit / 128M x 16 Bit NAND Flash Memory

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

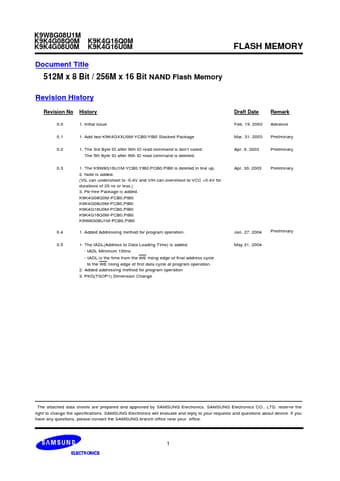

K9W8G08U1M K9K4G08Q0M K9K4G08U0M K9K4G16Q0M K9K4G16U0M FLASH MEMORY Document Title 512M x 8 Bit / 256M x 16 Bit NAND Flash Memory Revision History Revision No 0.0 0.1 0.2 History 1. Initial issue 1. Add two-K9K4GXXU0M-YCB0/YIB0 Stacked Package 1. The 3rd Byte ID after 90h ID read command is don’ t cared. The 5th Byte ID after 90h ID read command is deleted. 1. The K9W8G16U1M-YCB0,YIB0,PCB0,PIB0 is deleted in line up. 2. Note is added. (VIL can undershoot to -0.4V and VIH can overshoot to VCC +0.4V for durations of 20 ns or less.) 3. Pb-free Package is added. K9K4G08Q0M-PCB0,PIB0 K9K4G08U0M-PCB0,PIB0 K9K4G16U0M-PCB0,PIB0 K9K4G16Q0M-PCB0,PIB0 K9W8G08U1M-PCB0,PIB0 1. Added Addressing method for program operation. 1. The tADL(Address to Data Loading Time) is added.
