CL10A106MA8NRNC - Multi-layer Ceramic Capacitor

The CL10A106MA8NRNC by Samsung is a Multi-layer Ceramic Capacitor. Below is the official datasheet preview.

📥 Download Datasheet

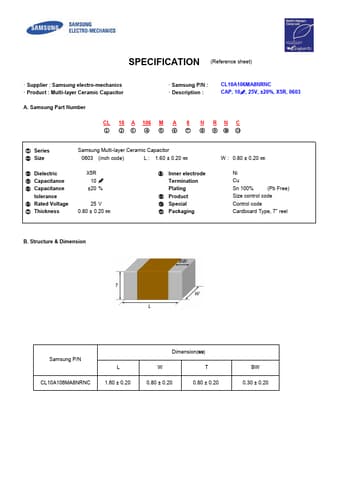

Official preview page of the CL10A106MA8NRNC Multi-layer Ceramic Capacitor datasheet (Samsung).

Datasheet Details

Part number CL10A106MA8NRNC
Manufacturer Samsung
File Size 1.42 MB
Description Multi-layer Ceramic Capacitor
Datasheet download datasheet CL10A106MA8NRNC-Samsung.pdf
Additional preview pages of the CL10A106MA8NRNC datasheet.

CL10A106MA8NRNC Product details

Description

: CL10A106MA8NRNC CAP, 10㎌, 25V, ±20%, X5R, 0603 A.Samsung Part Number CL 10 A 106 M A 8 N R N C ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨⑩ ⑪ ① Series ② Size Samsung Multi-layer Ceramic Capacitor 0603 (inch code) L : 1.60 ± 0.20 ㎜ ③ Dielectric ④ Capacitance ⑤ Capacitance tolerance ⑥ Rated Voltage ⑦ Thickness X5R 10 ㎌ ±20 % 25 V 0.80 ± 0.20 ㎜ ⑧ Inner electrode Termination Plating ⑨ Product ⑩ Special ⑪ Packaging W : 0.80 ± 0.20 ㎜ Ni Cu Sn 100% (Pb Free) Size control code Control code Cardboard Type, 7"
