S3C820B - S3C-SERIES MICROCONTROLLERS

Name: S3C820B
SKU: S3C820B-259714

Samsung semiconductor

📥 Download Datasheet

S3C820B Datasheet Preview — Preview of S3C820B PDF

Datasheet Details

Part number	S3C820B
Manufacturer	Samsung semiconductor
File Size	150.52 KB
Description	S3C-SERIES MICROCONTROLLERS
Datasheet	S3C820B_Samsungsemiconductor.pdf

S3C820B Product details

Description

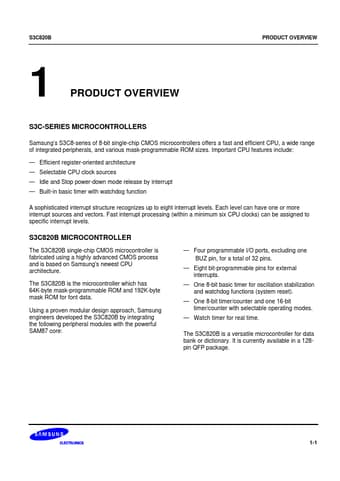

Table 1-1. P0.7 Pin Type I/O Pin Description I/O port with nibble-programmable pins; schmitt trigger input or push-pull, open-drain output and software assignable pull-up; also configurable as external interface address lines A8 A15. AD7.

Features

include:.
Efficient register-oriented architecture.
Selectable CPU clock sources.
Idle and Stop power-down mode release by interrupt.
Built-in basic timer with watchdog function A sophisticated interrupt structure recognizes up to eight interrupt levels. Each level can have one or more interrupt sources and vectors. Fast interrupt processing (within a minimum six CPU clocks) can be assigned to specific interrupt levels. S3C820B.
