S1M8662A - CDMA/PCS/GPS Triple Mode IF/ baseband IC

S1M8662A Description

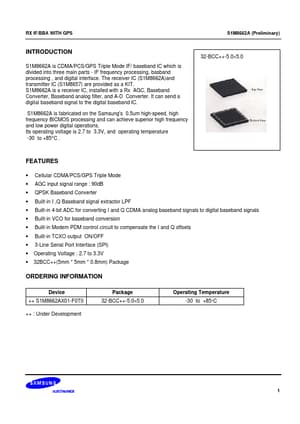

RX IF/BBA WITH GPS S1M8662A (Preliminary) INTRODUCTION S1M8662A is CDMA/PCS/GPS Triple Mode IF/ baseband IC which is divided into three main parts -.
Pin No 1 2 3 4 5 6 7 8 9 10 11 12 13 Symbol VDDD VDDA RAGC_CONT GRX_IF1 GRX_IF2 CRX_IF1 CRX_IF2 VDDA TCXO_out VDDA VDDA Q_OFS I_OFS P DO P P AI I/O P.

S1M8662A Features

* Cellular CDMA/PCS/GPS Triple Mode AGC input signal range : 90dB QPSK Baseband Converter Built-in I ,Q Baseband signal extractor LPF Built-in 4-bit ADC for converting I and Q CDMA analog base

📥 Download Datasheet

Preview of S1M8662A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S1M8662A
Manufacturer
Samsung semiconductor
File Size
175.76 KB
Datasheet
S1M8662A_Samsungsemiconductor.pdf
Description
CDMA/PCS/GPS Triple Mode IF/ baseband IC
