S1D2507B01 - WIDE BAND ANALOG SWITCH FOR MONITORS

Samsung semiconductor

📥 Download Datasheet

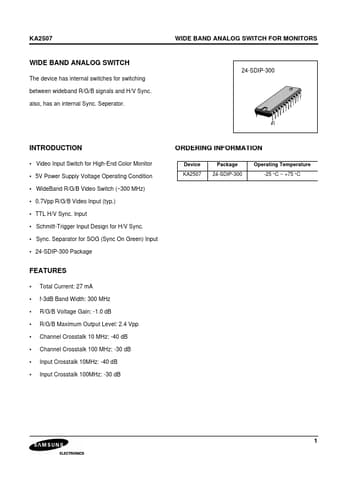

S1D2507B01 Datasheet Preview — Preview of S1D2507B01 PDF

Datasheet Details

Part number	S1D2507B01
Manufacturer	Samsung semiconductor
File Size	239.41 KB
Description	WIDE BAND ANALOG SWITCH FOR MONITORS
Datasheet	S1D2507B01_Samsungsemiconductor.pdf

S1D2507B01 Product details

Description

Table 2. max. f-3dB = 300 MH z 50Ω 50Ω 1.5kΩ 8 10 12 R2 G2 B2 PIN 2 GND1 - Red Block Ground 4 GND2 - Green Block Ground 9 GND3 - Blue Block Ground 11 GND4 - HV, SOG, SW Block Ground 6 7 H1 V1 1kΩ PIN 50kΩ Horizontal/Vertical Sync Input TTL Level 3~5V 0V 13 14 H2 V2 50kΩ 4 KA2507 WIDE BAND ANALOG SWITCH FOR MONITORS Table 2. Pin

Features

Total Current: 27 mA f-3dB Band Width: 300 MHz R/G/B Voltage Gain: -1.0 dB R/G/B Maximum Output Level: 2.4 Vpp Channel Crosstalk 10 MHz: -40 dB Channel Crosstalk 100 MHz: -30 dB Input Crosstalk 10MHz: -40 dB Input Crosstalk 100MHz: -30 dB 1 WIDE BAND ANALOG SWITCH FOR.
