KS9286B - DIGITAL SIGNAL PROCESSOR for CDP

Description

DIGITAL SIGNAL PROCESSOR for CDP PIN NO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 SYMBOL AVDD1 DPDO DPFIN DPFOUT CNTVOL AVSS1 DATX XIN XOUT WDCHO LRCHO ADATAO DVSS1 BCKO C2PO VREFL2 VREFL1 AVDD2 RCHOUT LCHOUT AVSS2 VREFH1 VREFH2 EMPH LKFS S0S1 RESET /ESP SQCK

Features

  • EFM data demodulation Frame sync detection/protection/insertion Powerful error correction (C1: 2error, C2: 4erasure) Interpolation 8fs digital filter (51th+13th+9th) Subcode data serial output CLV servo controller Micom interface Digital audio output Digital de-emphasis ESP interface Built-in 16K SRAM Built-in Digital PLL Double speed pla.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KS9282B DSP + DAC (16-Bit) for CDP Samsung Electronics
KS923C2 LOW LOSS SUPER HIGH SPEED RECTIFIER Fuji Electric
KS926S2 LOW LOSS SUPER HIGH SPEED RECTIFIER Fuji Electric

Other Datasheets by Samsung Semiconductor

Part Number Description
KS9286B-L DIGITAL SIGNAL PROCESSOR for CDP
KS9286 DIGITAL SIGNAL PROCESSOR for CDP
KS9287 DIGITAL SIGNAL PROCESSOR
KS9210 CMOS INTEGRATED CIRCUIT
KS9211 CMOS INTEGRATED CIRCUIT

Full PDF Text Transcription

Click to expand full text

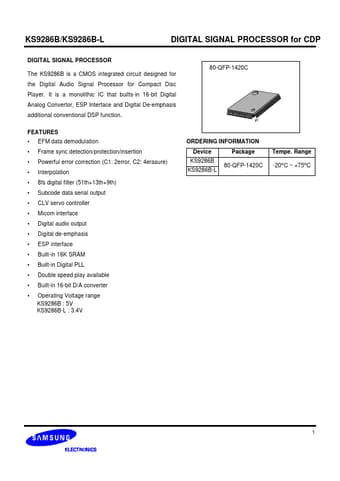

KS9286B/KS9286B-L DIGITAL SIGNAL PROCESSOR DIGITAL SIGNAL PROCESSOR for CDP 80-QFP-1420C The KS9286B is a CMOS integrated circuit designed for the Digital Audio Signal Processor for Compact Disc Player. It is a monolithic IC that builts-in 16-bit Digital Analog Convertor, ESP Interface and Digital De-emphasis additional conventional DSP function.
