KM23C4100DT - 4M-Bit (512Kx8 /256Kx16) CMOS MASK ROM

Description

The KM23C4100D(E)T is a fully static mask programmable ROM fabricated using silicon gate CMOS process technology, and is organized either as 524,288 x 8 bit(byte mode) or as 262,144 x 16 bit(word mode) depending on BHE voltage level.(See mode selection table) This device operates with a 5V single po

Features

  • Switchable organization 524,288 x 8(byte mode) 262,144 x 16(word mode).
  • Fast access time : 80ns(Max. ).
  • Supply voltage : single +5V.
  • Current consumption Operating : 50mA(Max. ) Standby : 50µA(Max. ).
  • Fully static operation.
  • All inputs and outputs TTL compatible.
  • Three state outputs.
  • Package -. KM23C4100D(E)T : 44-TSOP2-400 CMOS MASK ROM.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KM2520A01EC003 SUBMINIATURE SOLID STATE LAMPS Kingbright
KM2520A01ID003 SUBMINIATURE SOLID STATE LAMPS Kingbright
KM2520A01IT003 SUBMINIATURE SOLID STATE LAMPS Kingbright
KM2520A01SGC003 SUBMINIATURE SOLID STATE LAMPS Kingbright
KM2520A01SGD003 SUBMINIATURE SOLID STATE LAMPS Kingbright

Other Datasheets by Samsung Semiconductor

Part Number Description
KM23C4100DET 4M-Bit (512Kx8 /256Kx16) CMOS MASK ROM
KM23C4000D 4M-Bit (512Kx8) CMOS MASK ROM
KM23C4000DETY 4M-Bit (512Kx8) CMOS MASK ROM
KM23C4000DG 4M-Bit (512Kx8) CMOS MASK ROM
KM23C4000DTY 4M-Bit (512Kx8) CMOS MASK ROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

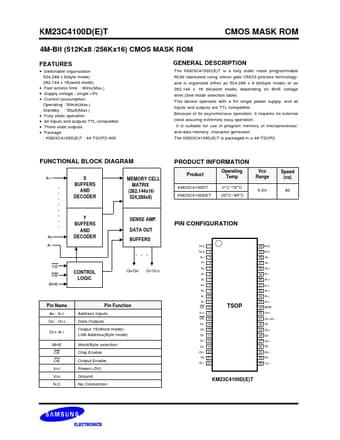

KM23C4100D(E)T 4M-Bit (512Kx8 /256Kx16) CMOS MASK ROM FEATURES • Switchable organization 524,288 x 8(byte mode) 262,144 x 16(word mode) • Fast access time : 80ns(Max.) • Supply voltage : single +5V • Current consumption Operating : 50mA(Max.) Standby : 50µA(Max.) • Fully static operation • All inputs and outputs TTL compatible • Three state outputs • Package -. KM23C4100D(E)T : 44-TSOP2-400 CMOS MASK ROM GENERAL DESCRIPTION The KM23C4100D(E)T is a fully static mask programmable ROM fabricated using silicon gate CMOS process technology, and is organized either as 524,288 x 8 bit(byte mode) or as 262,144 x 16 bit(word mode) depending on BHE voltage level.(See mode selection table) This device operates with a 5V single power supply, and all inputs and outputs are TTL compatible.
