KA336-5.0B PROGRAMMABLE SHUNT REGULATOR

KA336-5.0/B/KA236-5.0 PROGRAMMABLE SHUNT REGULATOR PROGRAMMABLE SHUNT REGULATOR The KA336-5.0/B integrated circuits are precision 5.0V shunt regulators. The monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6ohm dynamic impedance. A third terminal on the KA336-5.0/B allow the reference voltage and temperature coefficient to be trimmed easily. The KA336-5.0/B are useful as a precision 5.0V low voltage references it convenient in obtaining a stable refer.

KA336-5.0B Features

* Low temperature coefficient â

* Adjustable 4V to 6V

* Wide operating range current of 400 A to 10mA

* Three lead transistor package (TO-92)

* 0.6 ohm dynamic impedance

* 1.0% initial tolerance available

* Guaran

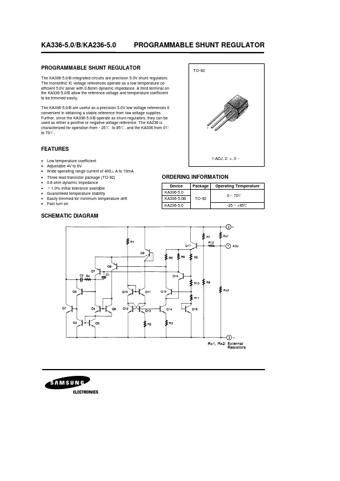

KA336-5.0-Samsungsemiconductor.pdf

KA336-5.0B Datasheet Preview — This datasheet PDF includes multiple part numbers: KA336-5.0B, KA336-5.0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KA336-5.0B, KA336-5.0

Manufacturer:

Samsung semiconductor

File Size:

51.56 KB

Description:

Programmable shunt regulator.

Note:

This datasheet PDF includes multiple part numbers: KA336-5.0B, KA336-5.0.
Please refer to the document for exact specifications by model.
