SC8180S - Dual N-Channel Enhancement Mode Field Effect Transistor

SC8180S Description

SC8180SGreen Product Sa mHop Microelectronics C orp.Dual N-Channel Enhancement Mode Field Effect Transistor Ver 1.1 PRODUCT SUMMARY VSSS IS RSS(.

SC8180S Features

* Super high dense cell design for low RDS(ON). Rugged and reliable. Wafer level CSP. ESD Protected. WLCSP TOP VIEW 1.88 0.03 8180S Date Code 1.88 0.03 BOTTOM VIEW 0.65 G2 S2 G1 S1 0.65 1-pin index mark S1 Mark area 0.100 0.010 4 - φ 0.31 S1: Source 1 G1: Gate 1 G2: Gate 2 S2: Source 2 U

📥 Download Datasheet

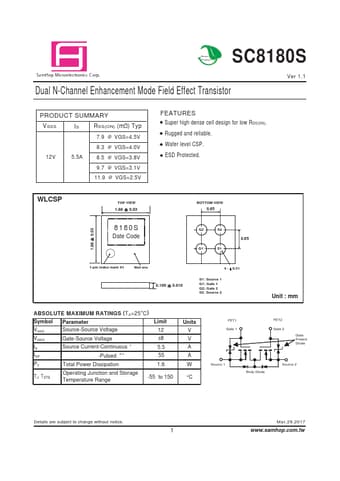

Preview of SC8180S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC8180S
Manufacturer
SamHop
File Size
127.97 KB
Datasheet
SC8180S-SamHop.pdf
Description
Dual N-Channel Enhancement Mode Field Effect Transistor
