Green Product

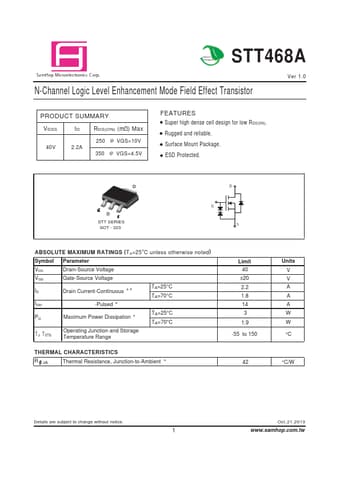

STT468A
Ver 1.0
S a mHop Microelectronics C orp.
N-Channel Logic Level Enhancement Mode Field Effect Transistor
PRODUCT SUMMARY
V DSS
40V
ID
2.2A
R DS(ON) (m Ω) Max
250 @ VGS=10V 350 @ VGS=4.5V
FEATURES Super high dense cell design for low R DS(ON). Rugged and reliable. Surface Mount Package. ESD Protected.
D
G G S
STT SERIES SOT - 223
S
ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM PD TJ, TSTG Parameter Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous -Pulsed
b a d
Limit 40 ±20 TA=25°C TA=70°C TA=25°C TA=70°C 2.2 1.8 14
a
Units V V A A A W W °C
Maximum Power Dissipation
3 1.
