STM6928 - Dual N-Channel MOSFET

Features

  • Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. ID 9.5A R DS(ON) (m Ω) Max 14 @ VGS=10V 16 @ VGS=4.5V D2 D2 5 6 7 8 4 3 2 1 G2 S2 G1 S1 S O-8 1 D1 D1.

📥 Download Datasheet

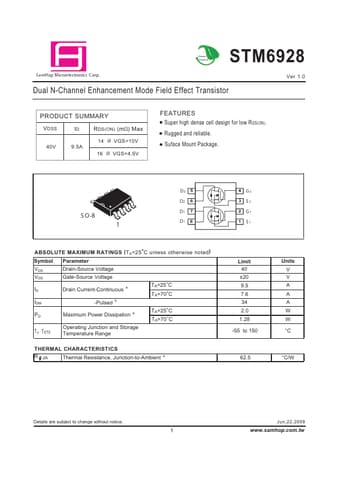

Datasheet preview – STM6928

Datasheet Details

Part number STM6928
Manufacturer SamHop Microelectronics
File Size 168.52 KB
Description Dual N-Channel MOSFET
Datasheet download datasheet STM6928 Datasheet
Additional preview pages of the STM6928 datasheet.

📁 Similar Datasheet

  • STM692A - 5V supervisor (STMicroelectronics)
  • STM690 - 3V Supervisor (ST Microelectronics)
  • STM6905 - ultralow voltage supervisor (STMicroelectronics)
  • STM690A - 5V supervisor (STMicroelectronics)
  • STM6960 - Dual N-Channel Enhancement Mode Field Effect Transistor (SamHop)
  • STM6962 - Dual N-Channel 60V MOSFET (VBsemi)
  • STM6315 - Open Drain Microprocessor Reset (ST Microelectronics)
  • STM6316 - DVD Optical Disc (STMicroelectronics)
  • STM6321 - 5-pin supervisor (ST Microelectronics)
  • STM6322 - 5-pin supervisor (ST Microelectronics)
Other Datasheets by SamHop Microelectronics
  • STM6920 - Dual N-Channel E nhancement Mode Field Effect Transistor
  • STM6920A - Dual N-Channel E nhancement Mode Field Effect Transistor
  • STM6922 - Dual N-Channel MOSFET
  • STM6924 - Dual N-Channel MOSFET
  • STM6926 - Dual N-Channel MOSFET
  • STM6912 - Dual N-Channel E nhancement Mode Field Effect Transistor
  • STM6913 - Dual N-Channel E nhancement Mode Field Effect Transistor
  • STM6913A - Dual N-Channel E nhancement Mode Field Effect Transistor

Full PDF Text Transcription

Click to expand full text
Green Product STM6928 Ver 1.0 S a mHop Microelectronics C orp. Dual N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY V DSS 40V FEATURES Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. ID 9.5A R DS(ON) (m Ω) Max 14 @ VGS=10V 16 @ VGS=4.5V D2 D2 5 6 7 8 4 3 2 1 G2 S2 G1 S1 S O-8 1 D1 D1 ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM PD TJ, TSTG Parameter Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous -Pulsed b a Limit 40 ±20 TA=25°C TA=70°C TA=25°C TA=70°C 9.5 7.6 34 a Units V V A A A W W °C Maximum Power Dissipation 2.0 1.
