SPN60T15W - N-Channel Enhancement Mode MOSFET

Description

APPLICATIONS The SPN60T15W is the N-Channel enhancement mode AC/DC Synchronous Rectifier power field effect transistor which is produced using

super high cell density DMOS trench technology.

UPS high density process is especially tailored to minimize on-state

Features

  • PIN.

📥 Download Datasheet

Datasheet Details

Part number SPN60T15W
Manufacturer SYNC POWER
File Size 441.75 KB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet SPN60T15W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SPN60600R8NETH Coating Inductors DARFON
SPN60600R9NETK Coating Inductors DARFON
SPN6060100METH Coating Inductors DARFON
SPN6060100METK Coating Inductors DARFON
SPN6060100METP Coating Inductors DARFON

Other Datasheets by SYNC POWER

Part Number Description
SPN60T15 N-Channel MOSFET
SPN6001 N-Channel MOSFET
SPN6098 N-Channel MOSFET
SPN6099 N-Channel MOSFET
SPN60N10 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

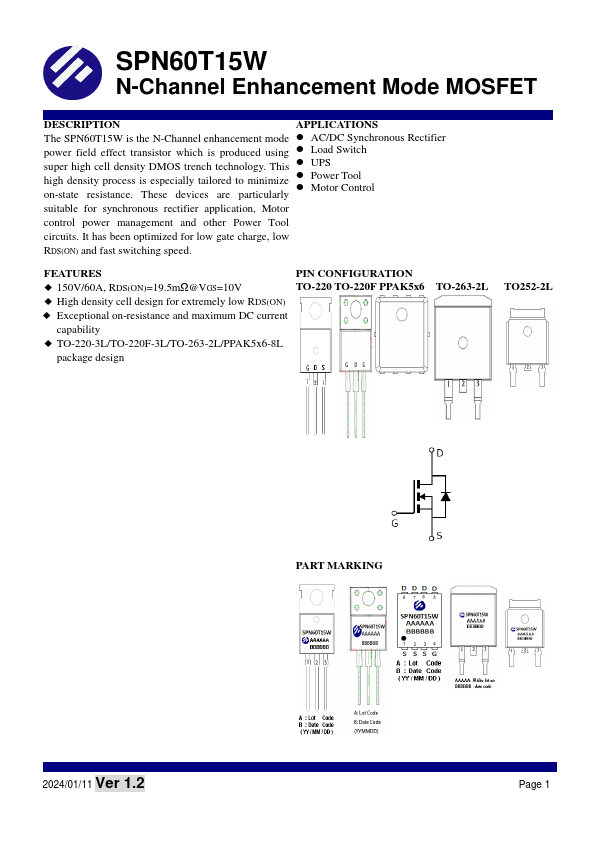

SPN60T15W N-Channel Enhancement Mode MOSFET DESCRIPTION APPLICATIONS The SPN60T15W is the N-Channel enhancement mode  AC/DC Synchronous Rectifier power field effect transistor which is produced using  Load Switch super high cell density DMOS trench technology. This  UPS high density process is especially tailored to minimize on-state resistance. These devices are particularly   Power Tool Motor Control suitable for synchronous rectifier application, Motor control power management and other Power Tool circuits. It has been optimized for low gate charge, low RDS(ON) and fast switching speed. FEATURES PIN CONFIGURATION  150V/60A, RDS(ON)=19.
