SPN1443A - N-Channel MOSFET

SPN1443A Description

SPN1443A N-Channel Enhancement Mode MOSFET .
The SPN1443A is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

SPN1443A Features

* 30V/2.8A,RDS(ON)=95mΩ@VGS=10V
* 30V/2.3A,RDS(ON)=105mΩ@VGS=4.5V
* 30V/1.5A,RDS(ON)=135mΩ@VGS=2.5V
* Super high density cell design for extremely low RDS (ON)
* Exceptional on-resistance and maximum DC current capability
* SOT-353 ( SC
* 70 ) package design PIN CONFIG

SPN1443A Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* DC/DC Converter
* Load Switch
* DSC

📥 Download Datasheet

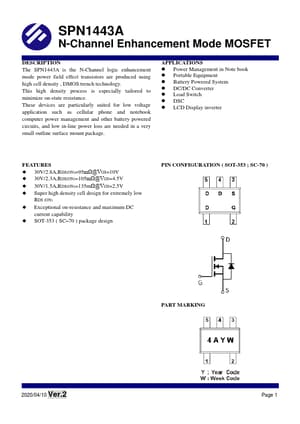

Preview of SPN1443A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SPN1443A
Manufacturer
SYNC POWER
File Size
340.86 KB
Datasheet
SPN1443A_SYNCPOWER.pdf
Description
N-Channel MOSFET
