L79L06, L79L05 Negative voltage regulators

L79L06 Description

79L05-SMD 79L05 SMD (SO-8) Negative voltage regulators .
The L79Lxx series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible.

L79L06 Features

* Output current up to 100 mA
* Output voltages of -5; -6; -8; -9; -12; -15V
* Thermal overload protection
* Short circuit protection
* No external components are required

L79L06 Applications

* including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with TO-92 SO-8 SOT-89 power pass elements to make high-current voltage regulators. The L79Lxx series used as Zener diode/resistor combin

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: L79L06, L79L05. Please refer to the document for exact specifications by model.

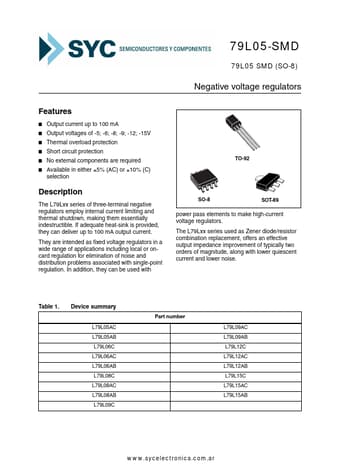

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
L79L06, L79L05
Manufacturer
SYC
File Size
675.72 KB
Datasheet
L79L05-SYC.pdf
Description
Negative voltage regulators
Note
This datasheet PDF includes multiple part numbers: L79L06, L79L05.
Please refer to the document for exact specifications by model.
