ERA15-01 - PLASTIC SILICON RECTIFIER DIODES

Product Overview

SUNMATE

Part number	ERA15-01
Manufacturer	SUNMATE
File Size	94.16 KB
Description	PLASTIC SILICON RECTIFIER DIODES
Datasheet	ERA15-01 Datasheet
Additional preview pages of the ERA15-01 datasheet.

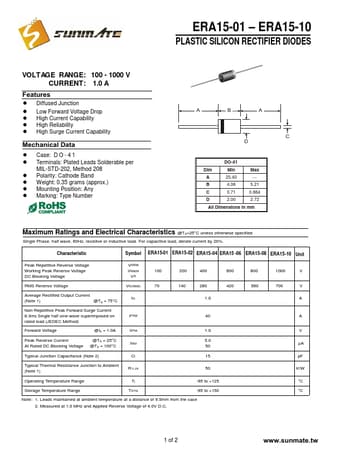

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number ABA D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm C Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise spe.
