1SMF5933B - SURFACE MOUNT SILICON ZENER DIODES

Download the 1SMF5933B datasheet PDF (1SMF5913B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount silicon zener diodes.

Features

  • ! Complete Voltage Range 3.3 to 240 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams B CE D L E A H SOD-123FL Dim Min Max Typ A 3.58 3.72 3.65 B 2.72 2.78 2.75 C 1.77 1.83 1.80 D 1.02 1.08 1.05 E 0.097 1.03 1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMF5913B-SUNMATE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMF5933B
Manufacturer SUNMATE
File Size 472.76 KB
Description SURFACE MOUNT SILICON ZENER DIODES
Datasheet download datasheet 1SMF5933B Datasheet

📁 Similar Datasheet

  • 1SMF5920B - 2.5 Watt Zener Diode (ON Semiconductor)
  • 1SMF5920BT1G - 2.5 Watt Zener Diode (ON Semiconductor)
  • 1SMF16BT1 - Zener TVS (ON Semiconductor)
  • 1SMF16BT3 - Zener TVS (ON Semiconductor)
  • 1SMF16BT3G - Zener TVS (ON Semiconductor)
  • 1SMA10 - 400 Watt Peak Power Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMA10AT3 - Zener Transient Voltage Suppressors (Motorola Inc)
  • 1SMA10AT3 - 400 Watt Peak Power Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMA10AT3G - 400 Watt Peak Power Zener Transient Voltage Suppressors (ON Semiconductor)
  • 1SMA10CAT3 - Zener Transient Voltage Suppressors (Motorola Inc)
Other Datasheets by SUNMATE
  • 1SMF5930B - SURFACE MOUNT SILICON ZENER DIODES
  • 1SMF5931B - SURFACE MOUNT SILICON ZENER DIODES
  • 1SMF5932B - SURFACE MOUNT SILICON ZENER DIODES
  • 1SMF5934B - SURFACE MOUNT SILICON ZENER DIODES
  • 1SMF5935B - SURFACE MOUNT SILICON ZENER DIODES
  • 1SMF5936B - SURFACE MOUNT SILICON ZENER DIODES
  • 1SMF5937B - SURFACE MOUNT SILICON ZENER DIODES
  • 1SMF5938B - SURFACE MOUNT SILICON ZENER DIODES

Full PDF Text Transcription

Click to expand full text

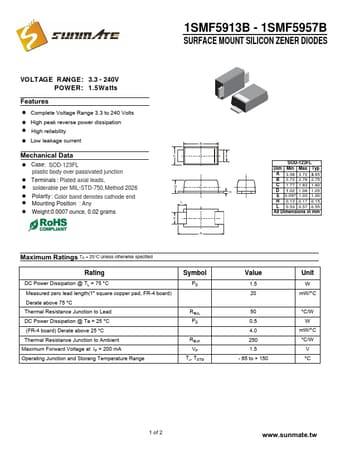

1SMF5913B - 1SMF5957B SURFACE MOUNT SILICON ZENER DIODES VOLTAGE RANGE: 3.3 - 240V POWER: 1.5Wa t t s Features ! Complete Voltage Range 3.3 to 240 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams B CE D L E A H SOD-123FL Dim Min Max Typ A 3.58 3.72 3.65 B 2.72 2.78 2.75 C 1.77 1.83 1.80 D 1.02 1.08 1.05 E 0.097 1.03 1.00 H 0.13 0.17 0.15 L 0.53 0.57 0.
