SC2004CSLB-XA-GB-G Datasheet - SUNLIKE

SC2004CSLB-XA-GB-G LIQUID CRYSTAL DISPLAY

Pin No. Pin Out Level 1 VSS 0V Power Supply Ground 2 VDD 5.0V Power Supply Voltage 3 Vo *- Contrast Adj 4 RS H/L Register Select 5 R/W H/L Read / Write 6 E H,H→L Enable Signal 7 DB0 H/L Data Bit 0 8 DB1 H/L Data Bit 1 9 DB2 H/L Data Bit 2 10 DB3 H/L Data Bit 3 .

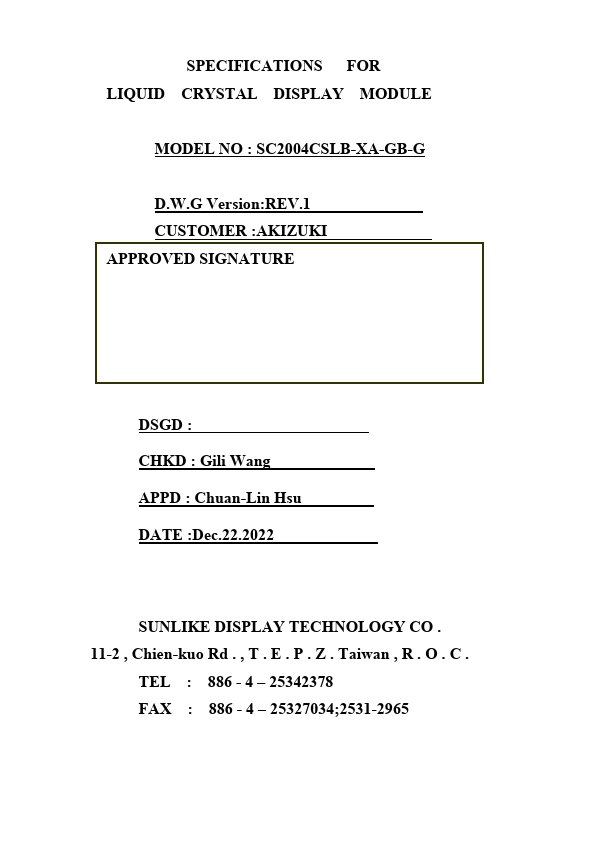

SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY MODULE MODEL NO : SC2004CSLB-XA-GB-G D.W.G Version:REV.1 CUSTOMER :AKIZUKI APPROVED SIGNATURE DSGD : CHKD : Gili Wang APPD : Chuan-Lin Hsu DATE :Dec.22.2022 SUNLIKE DISPLAY TECHNOLOGY CO . 11-2 , Chien-kuo Rd . , T . E . P . Z . Taiwan , R . O . C . TEL : 886 - 4 25342378 FAX : 886 - 4 25327034;2531-2965 SUNLIKE DISPLAY Model No : SC2004C No. Date 1 Dec.22.2022 Revision Record Model No. Version SC2004CSLB-XA-GB-G REV.0 Remarks.
