KBJ401G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Download the KBJ401G datasheet PDF (KBJ4005G included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for glass passivated single-phase bridge rectifier.

Features

  • Plastic material used carries Underwriters Laboratory recognition 94V-O.
  • Low leakage.
  • Surge overload rating-- 30 amperes peak.
  • Ideal for printed circuit board.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Lead free in comply with EU RoHS 2011/65/EU directives.
  • Green molding compound as per IEC61249 Std. . (Halogen Free).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KBJ4005G-STS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KBJ401G
Manufacturer STS
File Size 2.00 MB
Description GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet download datasheet KBJ401G Datasheet

📁 Similar Datasheet

  • KBJ401G - CLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIERS (Jinan Gude Electronic Device)
  • KBJ401G - 4 AMP GLASS PASSIVATED SILICON BRIDGE RECTIFIER (Fuji)
  • KBJ401G - 4.0A GLASS PASSIVATED BRIDGE RECTIFIER (Diodes Incorporated)
  • KBJ401G - Silicon Bridge Rectifier (America Semiconductor)
  • KBJ401G - Single Phase Glass Passivated Silicon Bridge Rectifier (GeneSiC)
  • KBJ401G - SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIER (MIC)
  • KBJ401G - 4.0A GLASS PASSIVATED BRIDGE RECTIFIER (YS)
  • KBJ401G - SINGLE-PHASE SILICON BRIDGE (CHENG-YI)
  • KBJ401G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Sangdest Microelectronics)
  • KBJ401G - 4 Amp GLASS PASSIVATED BRIDGE RECTIFIERS (MCC)
Other Datasheets by STS
  • KBJ4005G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
  • KBJ402G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
  • KBJ404G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
  • KBJ406G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
  • KBJ408G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
  • KBJ410G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
  • KBJ6005G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
  • KBJ601G - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

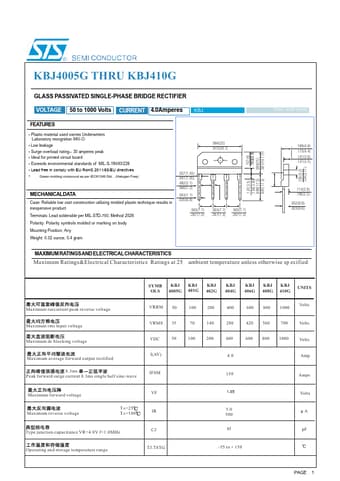

KBJ4005G THRU KBJ410G GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE 50 to 1000 Volts CURRENT 4 .0Amperes KBJ FEATURES • Plastic material used carries Underwriters Laboratory recognition 94V-O • Low leakage • Surge overload rating-- 30 amperes peak • Ideal for printed circuit board • Exceeds environmental standards of MIL-S-19500/228 • Lead free in comply with EU RoHS 2011/65/EU directives • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICALDATA Case: Reliable low cost construction utilizing molded plastic technique results in inexpensive product Terminals: Lead solderable per MIL-STD-750, Method 2026 Polarity: Polarity symbols molded or marking on body Mounting Position: Any Weight: 0.02 ounce, 0.4 gram .057(1.45) .041(1.05) .082(2.1) .060(1.2) .043(1.
