W11NK90Z - STW11NK90Z

Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.

Features

  • Type STW11NK90Z.
  • VDSS 900V RDS(on).

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

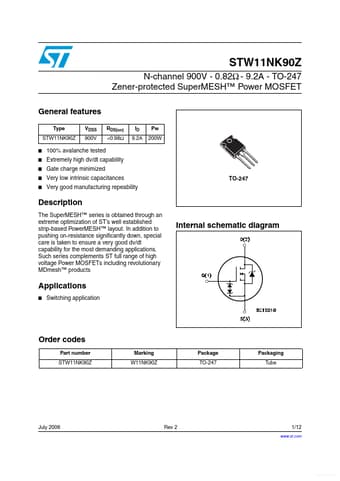

STW11NK90Z N-channel 900V - 0.82Ω - 9.2A - TO-247 Zener-protected SuperMESH™ Power MOSFET General features Type STW11NK90Z ■ ■ ■ ■ ■ VDSS 900V RDS(on) <0.98Ω ID 9.2A Pw 200W 100% avalanche tested Extremely high dv/dt capability Gate charge minimized Very low intrinsic capacitances Very good manufacturing repeability TO-247 Description The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.
