VX6953CB - 5.1 megapixel EDOF camera module

Product Overview

STMicroelectronics

📥 Download Datasheet

VX6953CB 5.1 megapixel EDOF camera module by STMicroelectronics - Datasheet Preview — Datasheet preview – VX6953CB

Datasheet Details

Part number	VX6953CB
Manufacturer	STMicroelectronics
File Size	2.41 MB
Description	5.1 megapixel EDOF camera module
Datasheet	VX6953CB Datasheet

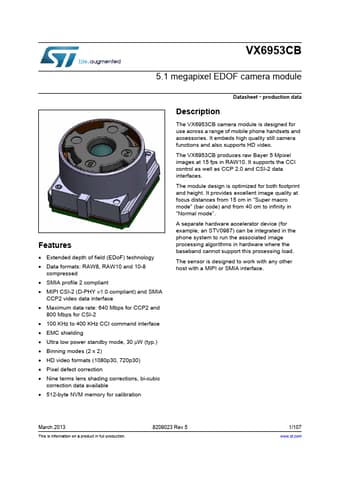

Additional preview pages of the VX6953CB datasheet.

Product details

Description

The VX6953CB camera module is designed for use across a range of mobile phone handsets and accessories.

Features

Extended depth of field (EDoF) technology.
Data formats: RAW8, RAW10 and 10-8 compressed.
SMIA profile 2 compliant.
MIPI CSI-2 (D-PHY v1.0 compliant) and SMIA CCP2 video data interface.
Maximum data rate: 640 Mbps for CCP2 and 800 Mbps for CSI-2.
100 KHz to 400 KHz CCI command interface.
EMC shielding.
Ultra low power standby mode, 30 μW (typ. ).
Binning modes (2 x 2).
HD video formats (1080p30, 720p30).
