VNS3NV04DP-E Automotive OMNIFET II fully autoprotected Power MOSFET

STMicroelectronics

Description

VNS3NV04DP-E Automotive OMNIFET II fully autoprotected Power MOSFET Datasheet - production data SO-8 * Linear current limitation * Thermal.
The VNS3NV04DP-E device is made up of two monolithic chips (OMNIFET II) housed in a standard SO-8 package.

📥 Download Datasheet

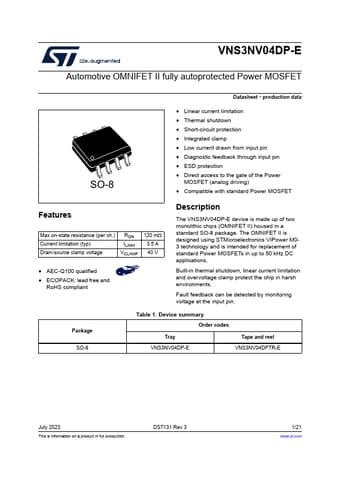

VNS3NV04DP-E Datasheet Preview — Preview of VNS3NV04DP-E PDF

Datasheet Specifications

Part number: VNS3NV04DP-E
Manufacturer: STMicroelectronics ↗
File Size: 378.24 KB
Datasheet: VNS3NV04DP-E-STMicroelectronics.pdf
Description: Automotive OMNIFET II fully autoprotected Power MOSFET

Features

* Max on-state resistance (per ch. ) Current limitation (typ) Drain-source clamp voltage RON ILIMH VCLAMP 120 m 3.5 A 40 V
* AEC-Q100 qualified

Applications

* Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring voltage at the input pin.  Package SO-8 Table 1. Device summary Order codes Tray Tape and reel VNS3NV04DP-E VNS3NV04DPTR-E July 2023
