VNK10N06FM - FULLY AUTOPROTECTED POWER MOSFET

Product Overview

STMicroelectronics

Datasheet Details

Part number	VNK10N06FM
Manufacturer	STMicroelectronics
File Size	557.49 KB
Description	FULLY AUTOPROTECTED POWER MOSFET
Datasheet	VNK10N06FM Datasheet

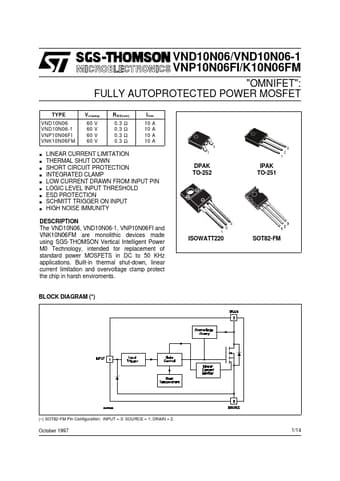

Additional preview pages of the VNK10N06FM datasheet.

Product details

Description

The VND10N06, VND10N06-1, VNP10N06FI and VNK10N06FM are monolithic devices made using SGS-THOMSON Vertical Intelligent Power M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. ) (∗) SOT82-FM Pin Configuration: INPUT = 3; SOURCE = 1; DRAIN = 2. October 19

Features

During Normal Operation, the INPUT pin is electrically connected to the gate of the internal power MOSFET through a low impedance path as soon as VIN > VIH. The device then behaves like a standard power MOSFET and can be used as a switch from DC to 50KHz. The only difference from the user’s standpoint is that a small DC current (typically 150 µA) flows into the INPUT pin in order to supply the internal circuitry. During turn-off of an unclamped inductive load the output voltage is clamped to a s.
