VN808CM-32-E - Octal channel high-side driver

VN808CM-32-E Description

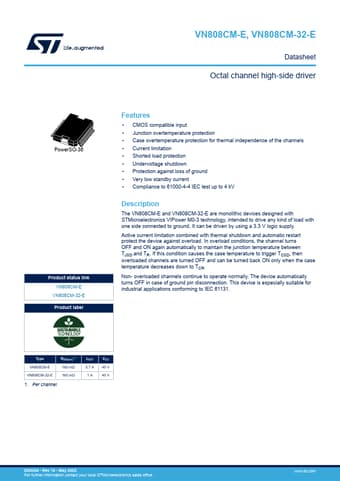

VN808CM-E, VN808CM-32-E Datasheet Octal channel high-side driver PowerSO-36 Product status link VN808CM-E VN808CM-32-E Product label .
The VN808CM-E and VN808CM-32-E are monolithic devices designed with STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load wit.

VN808CM-32-E Features

* CMOS compatible input
* Junction overtemperature protection
* Case overtemperature protection for thermal independence of the channels
* Current limitation
* Shorted load protection
* Undervoltage shutdown
* Protection against loss of ground

VN808CM-32-E Applications

* conforming to IEC 61131. Type VN808CM-E VN808CM-32-E RDS(on)(1) 160 mΩ 160 mΩ 1. Per channel IOUT 0.7 A 1A VCC 45 V 45 V DS4334 - Rev 13 - May 2023 For further information contact your local STMicroelectronics sales office. www. st. com 1 Overview IN1 IN2 . . . IN8 STATUS VN808CM-E, VN808CM

📥 Download Datasheet

Preview of VN808CM-32-E PDF
datasheet Preview Page 2 datasheet Preview Page 3
