VIPer53ESP-E - OFF-line Primary Switch

Product Overview

STMicroelectronics

📥 Download Datasheet

VIPer53ESP-E OFF-line Primary Switch by STMicroelectronics - Datasheet Preview — Datasheet preview – VIPer53ESP-E

Datasheet Details

Part number	VIPer53ESP-E
Manufacturer	STMicroelectronics
File Size	247.97 KB
Description	OFF-line Primary Switch
Datasheet	VIPer53ESP-E Datasheet
Note	This datasheet PDF includes multiple part numbers: VIPer53ESP-E, VIPer53EDIP-E. Please refer to the document for exact specifications by model.

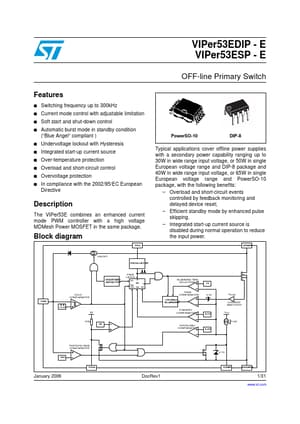

Additional preview pages of the VIPer53ESP-E datasheet.

Product details

Description

The VIPer53E combines an enhanced current mode PWM controller with a high voltage MDMesh Power MOSFET in the same package. O

Features

Switching frequency up to 300kHz.
Current mode control with adjustable limitation.
Soft start and shut-down control.
Automatic burst mode in standby condition (“Blue Angel“ compliant ).
Undervoltage lockout with Hysteresis.
Integrated start-up current source.
Over-temperature protection.
Overload and short-circuit control.
Overvoltage protection.
In compliance with the 2002/95/EC European Directive.
