VIPer22AS - LOW POWER OFF LINE SMPS PRIMARY SWITCHER

Description

MOSFET on the same silicon chip.

📥 Download Datasheet

Datasheet preview – VIPer22AS

Datasheet Details

Part number VIPer22AS
Manufacturer STMicroelectronics
File Size 262.26 KB
Description LOW POWER OFF LINE SMPS PRIMARY SWITCHER
Datasheet download datasheet VIPer22AS Datasheet
Additional preview pages of the VIPer22AS datasheet.

📁 Similar Datasheet

  • VIPER20A-E - SMPS primary IC (ST Microelectronics)
  • VIPER25 - Off-line high voltage converters (ST Microelectronics)
  • VIPER100-E - Fixed frequency off-line converter (ST Microelectronics)
  • VIPER12ADIP-E - Low Power OFF-Line SMPS Primary Switcher (ST Microelectronics)
  • VIPER12AS-E - Low Power OFF-Line SMPS Primary Switcher (ST Microelectronics)
  • VIPER15 - Off-line high voltage converters (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

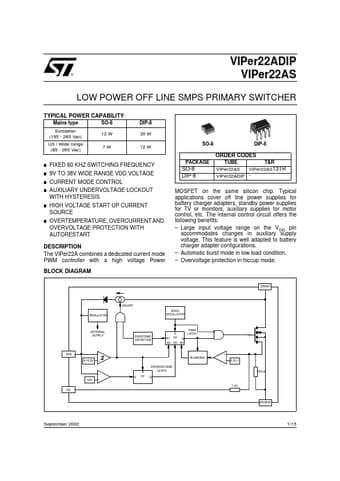

® VIPer22ADIP VIPer22AS LOW POWER OFF LINE SMPS PRIMARY SWITCHER TYPICAL POWER CAPABILITY Mains type European (195 - 265 Vac) US / Wide range (85 - 265 Vac) SO-8 12 W 7W DIP-8 20 W 12 W SO-8 DIP-8 ORDER CODES n n n n FIXED 60 KHZ SWITCHING FREQUENCY 9V TO 38V WIDE RANGE VDD VOLTAGE CURRENT MODE CONTROL AUXILIARY UNDERVOLTAGE LOCKOUT WITH HYSTERESIS SOURCE PACKAGE SO-8 DIP-8 TUBE T&R VIPer22AS VIPer22AS13TR VIPer22ADIP - n HIGH VOLTAGE START UP CURRENT n OVERTEMPERATURE, OVERCURRENT AND OVERVOLTAGE PROTECTION WITH AUTORESTART DESCRIPTION The VIPer22A combines a dedicated current mode PWM controller with a high voltage Power BLOCK DIAGRAM MOSFET on the same silicon chip.
