VIPer20DIP - SMPS PRIMARY I.C.

STMicroelectronics

The VIPer20DIP by STMicroelectronics is a SMPS PRIMARY I.C.. Below is the official datasheet preview.

📥 Download Datasheet

VIPer20DIP SMPS PRIMARY I.C. by STMicroelectronics - Datasheet Preview — Official preview page of the **VIPer20DIP** SMPS PRIMARY I.C. datasheet (STMicroelectronics).

Datasheet Details

Part number	VIPer20DIP
Manufacturer	STMicroelectronics
File Size	179.97 KB
Description	SMPS PRIMARY I.C.
Datasheet	VIPer20DIP_STMicroelectronics.pdf

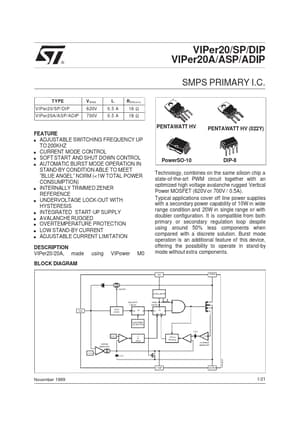

Additional preview pages of the VIPer20DIP datasheet.

VIPer20DIP Product details

Description

VIPer20/20A, made BLOCK DIAGRAM OSC PENTAWATT HV (022Y) 10 1 PowerSO-10 DIP-8 using VIPower M0 Technology, combines on the same silicon chip a state-of-the-art PWM circuit together with an optimized high voltage avalanche rugged Vertical Power MOSFET (620V or 700V / 0.5A).Typical applications cover off line power supplies with a secondary power capability of 10W in wide range condition and 20W in single range or with doubler configuration.It is compatible from both primary or secondar
