VIPER26 - Fixed frequency VIPer

Product Overview

STMicroelectronics

Datasheet Details

Part number	VIPER26
Manufacturer	STMicroelectronics
File Size	806.49 KB
Description	Fixed frequency VIPer
Datasheet	VIPER26 Datasheet

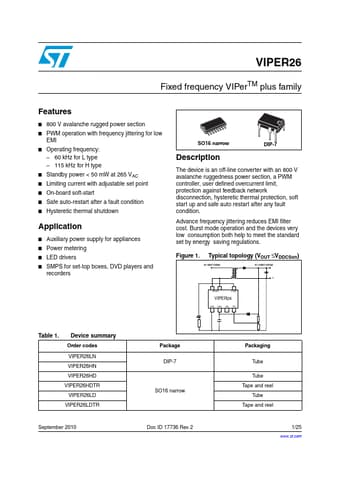

Additional preview pages of the VIPER26 datasheet.

Product details

Description

DIP-7 The device is an off-line converter with an 800 V avalanche ruggedness power section, a PWM controller, user defined overcurrent limit, protection against feedback network disconnection, hysteretic thermal protection, soft start up and safe auto restart after any fault condition.Advance frequency jittering reduces EMI filter cost.Burst mode operation and the devices very low consumption both help to meet the standard set by energy saving regulations.Figure 1. Typical topology (VOUT ≤

Features

800 V avalanche rugged power section.
PWM operation with frequency jittering for low EMI.
Operating frequency:.
60 kHz for L type.
115 kHz for H type.
Standby power < 50 mW at 265 VAC.
Limiting current with adjustable set point.
On-board soft-start.
Safe auto-restart after a fault condition.
Hysteretic thermal shutdown.
