ULQ2004A - Seven Darlington array

STMicroelectronics

The ULQ2004A by STMicroelectronics is a Seven Darlington array. Below is the official datasheet preview.

📥 Download Datasheet

ULQ2004A Seven Darlington array by STMicroelectronics - Datasheet Preview — Official preview page of the **ULQ2004A** Seven Darlington array datasheet (STMicroelectronics).

Datasheet Details

Part number	ULQ2004A
Manufacturer	STMicroelectronics
File Size	591.22 KB
Description	Seven Darlington array
Datasheet	ULQ2004A_STMicroelectronics.pdf

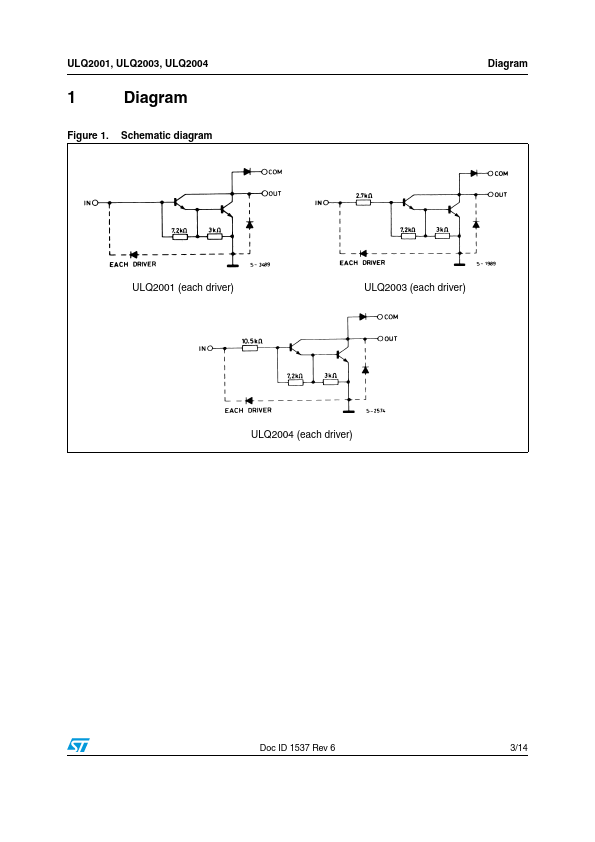

Additional preview pages of the ULQ2004A datasheet.

ULQ2004A Product details

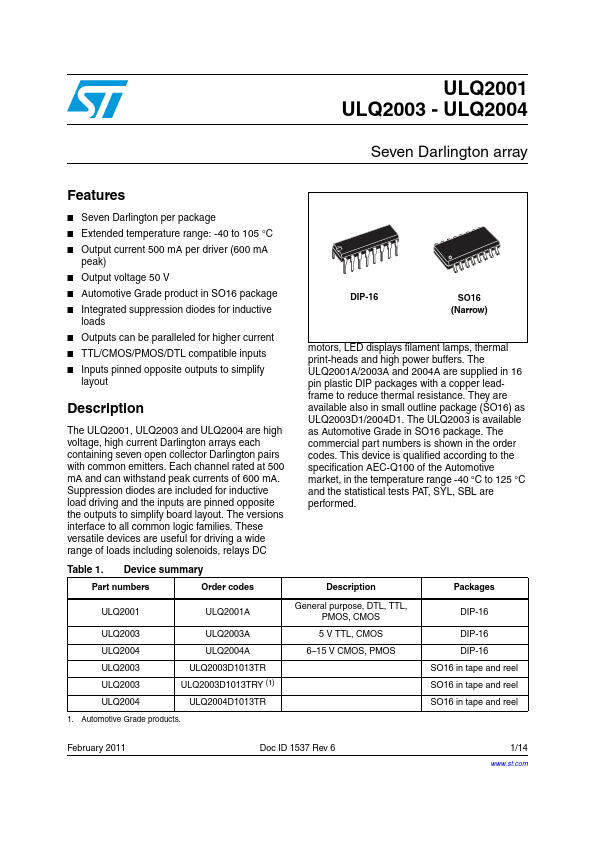

Description

The ULQ2001, ULQ2003 and ULQ2004 are high voltage, high current Darlington arrays each containing seven open collector Darlington pairs with common emitters.

Features

Seven Darlington per package.
Extended temperature range: -40 to 105 °C.
Output current 500 mA per driver (600 mA peak).
Output voltage 50 V.
Automotive Grade product in SO16 package.
Integrated suppression diodes for inductive loads.
Outputs can be paralleled for higher current.
TTL/CMOS/PMOS/DTL compatible inputs.
Inputs pinned opposite outputs to simplify layout.
