TSD57060 RF POWER TRANSISTORS The LdmoSTFAMILY

TSD57060 Description

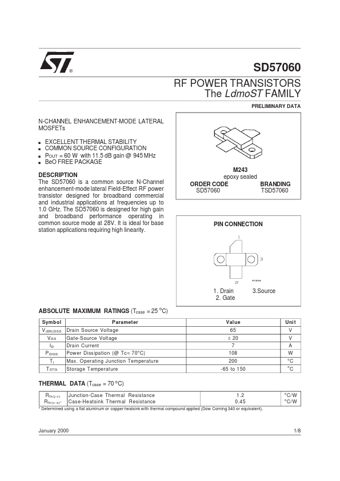

® SD57060 RF POWER TRANSISTORS The LdmoST FAMILY PRELIMINARY DATA N-CHANNEL ENHANCEMENT-MODE LATERAL MOSFETs s s s s EXCELLENT THERMAL STABILITY CO.
The SD57060 is a common source N-Channel enhancement-mode lateral Field-Effect RF power transistor designed for broadband commercial and industrial ap.

TSD57060 Applications

* at frequencies up to 1.0 GHz. The SD57060 is designed for high gain and broadband performance operating in common source mode at 28V. It is ideal for base station applications requiring high linearity. PIN CONNECTION 1. Drain 2. Gate ABSOLUTE MAXIMUM RATINGS (Tcase = 25 oC) Symbol V (BR)DSS V GS I
