TL082A - General purpose JFET dual operation amplifiers

STMicroelectronics

The TL082A by STMicroelectronics is a General purpose JFET dual operation amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

TL082A General purpose JFET dual operation amplifiers by STMicroelectronics - Datasheet Preview — Official preview page of the **TL082A** General purpose JFET dual operation amplifiers datasheet (STMicroelectronics).

Datasheet Details

Part number	TL082A
Manufacturer	STMicroelectronics
File Size	855.05 KB
Description	General purpose JFET dual operation amplifiers
Datasheet	TL082A_STMicroelectronics.pdf

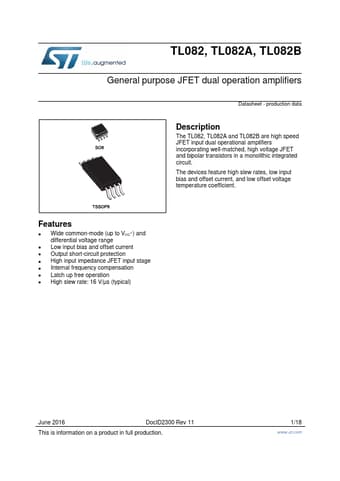

Additional preview pages of the TL082A datasheet.

TL082A Product details

Description

The TL082, TL082A and TL082B are high speed JFET input dual operational amplifiers incorporating well-matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit.

Features

Wide common-mode (up to VCC+) and differential voltage range Low input bias and offset current Output short-circuit protection High input impedance JFET input stage Internal frequency compensation Latch up free operation High slew rate: 16 V/µs (typical) June 2016 DocID2300 Rev 11 This is information on a product in full production. 1/18 www. st. com Contents TL082, TL082A, TL082B Contents 1 Schematic diagram 3 2 Pin connections 4 3 Absolute maximum ratings and operating conditions 5 4 Ele.
